Verivolt - San Francisco

Verivolt is a leading supplier of electronic related products in San Francisco, CA. We are specialized in providing engineers and researchers with products to deal with power related applications. Verivolt sensing products are solutions for diagnostic, control and monitoring the power systems. Our products are current sensors, current transducer, current shunt, voltage sensor, voltage transducer, voltage, isolators and many more. Our sensor product gives powerful options to build faster system performance, reducing risks and less cost. Verivolt products are used in many industries by their engineers and scientists. All our sensor products are available in our online store at reasonable price.Website: https://verivolt.com/

Business Operation Hours
Monday 9:00 AM to 5:00 PM
Tuesday 9:00 AM to 5:00 PM
Wednesday 9:00 AM to 5:00 PM
Thursday 9:00 AM to 5:00 PM
Friday 9:00 AM to 5:00 PM
Saturday 9:00 AM to 5:00 PM
Sunday 9:00 AM to 5:00 PM

Other Categories : Electrical Manufacturing,



Additional Information

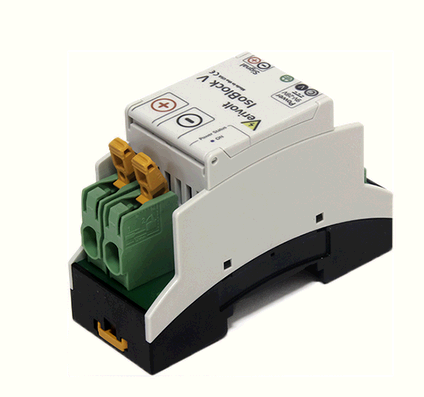

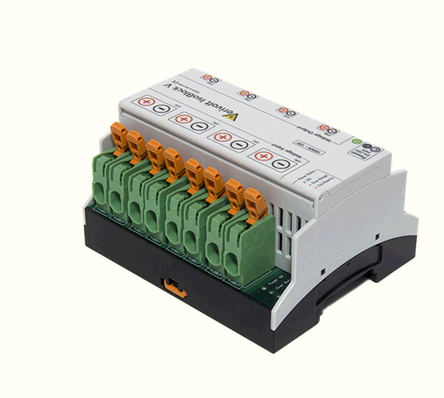

The IsoBlock V module has been designed to provide high-quality isolated differential voltage measurements for applications requiring scaling of high voltages, as well as superior isolation.Each IsoBlock V unit hosts four separate isolated channels, each of which can be connected to separate measurement sources while providing a range of functional coverage up to 1500V.

The input of each specific IsoBlock channel has its own isolated reference, and can be configured to suit user needs. All processed signals output from the IsoBlock unit are referenced in respect to the ground channel of the user’s data acquisition system.Verivolt designs its IsoBlock V modules with consideration for user great flexibility, high channel-density and low power consumption.

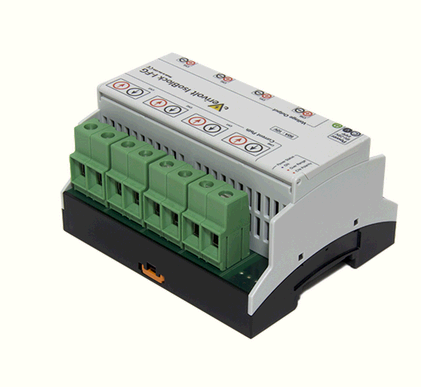

The IsoBlock Current-FG-SC is a 4 (four) channel (SC) module designed for high-quality isolated current measurements up to 50 Amperes. It provides 1200V primary-to-secondary isolation, which allows users to monitor a miscellaneous of currents at different potentials.

The IsoBlock Current-FG uses Flux-Gate methodology to measure the current flowing through the input conductor. In essence, this technique works by placing a toroid with a high number of turns (secondary) around the input current path (primary), while a close-loop circuitry controls the current through the secondary to null out the magnetic field inside the toroid.

The input current is then obtained by multiplying the current from the control circuitry by the number of turns of the secondary. This is followed by an anti-aliasing filter and a conditioning stage to output a ±5V signal.The compact form factor of the IsoBlock Current-FG module allows users to setup high channel density monitoring systems, making it ideal for deployed and portable systems.

Product and Services

voltage transducers voltage sensor current transducer current shunt voltage sensor MHz
