Pelmar Engineering Ltd. - Scarborough

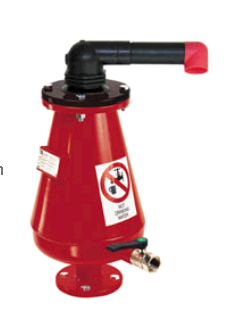

Pelmar Engineering Ltd., located in Scarborough, is a premier industrial equipment and related products supplier for industrial and manufacturing suppliers. Products offered by Pelmar include: various air valves such as air release valve, cabinet cooler, and cabinet air conditioners. They also provide: water filtration products, wet/dry vacuums, spray nozzles, and more.
Product and Services

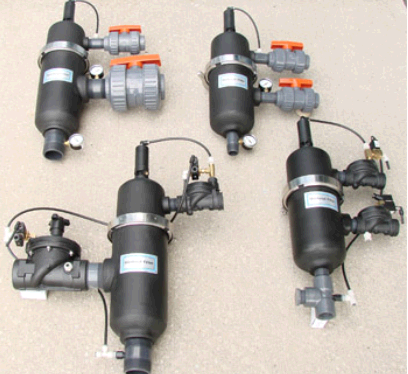

The AMF Series from Amiad is a self-cleaning water filter with a microfiber filter elements for filtration as fine as 2 micron, which is equal to the performance of a cartridge filtration without the need to replace cartridges. Flow range is up to 320m3/h (1,410 US gpm), and filtration range is 2-20 micron.

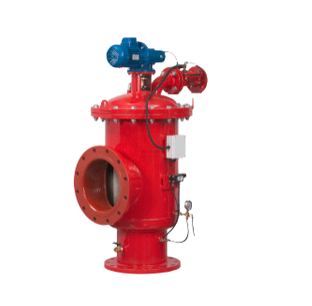

The M300 self cleaning process begins when the rinse controller activates the hydraulic valves and piston, and water from the hydraulic motor chamber flows out. Pressure inside the hydraulic motor chamber, the dirt collector, and the suction nozzles drops to a very low level creating a pressure gradient between the reverse side of the screen (clean water) and the inside of the screen (dirty water), opposite the suction nozzles. This back-flushing operation cleans the screen ahead of the suction nozzle.
The water and the dirt passing through the hydraulic motor cause the collector to rotate, while the piston is activated in an axial movement. The combination of the axial and rotational movement of the nozzles means that the entire area of the fine screen is totally cleaned.
